Auto Weighing and De-dust Dry Polymerric Mortar EPS Cornice Coating Mixer

  • >=1 Sets
    $15,000.00
Production Capacity:
1-3t/h
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
Zhejiang, China
Power(W):
22.5kw
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Product name:
Cement Mortar Mixer
Keyword:
Polymerric Mortar Powder Mixer
Weight:
3200KG
Type:
auto weighing
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
PE FILM/CUSTOM REQUEST
Port
ningbo

PRODUCT SHOW



Product Description



         This equipment mainly has the big angle spiral feeding machine, the small platform type non gravity mixer, the finished product hoist, the storage silo, the automatic measuring packing machine, the electric control cabinet, the pulse dust collector and so on.

Main features:

        1,Horizontal ladder installation equipment (for low plant), excellent performance, simple operation,           small occupied area, unit less labor, material mixing uniformity, high production efficiency, is a reasonable configuration, low maintenance is ideal for dry powder, granular material production equipment.

2,The mixer adopts two shafts, two way and fork hand stirring, so that the material is boiling in the body. Besides, the drum is of a sparse knife type fiber dispersion shaft. The high speed disperse fiber can reach the material and fiber evenly in a short time

3,The high performance pulse bag filter has high purification efficiency, greatly improved working environment and high environmental protection factor

4,Automatic packing machine, automatic length, computer intelligent automatic recognition, simple operation, only the workers pockets can complete the packaging production process, save manpower, reduce labor intensity, reduce production cost and improve production efficiency. The measurement can be set in the packing display exercise, according to a set of automatic weighing.



Type: GB-DM01

Automatic loading , two cement mix tank for continuous working

Including: 2 screw feeding machine(3kw*2),1 mixer(7.5kw),finished product stock bin,1 single-spout packing machine(4kw),1 duster(1.5kw),1 electric control cabinet.

Total power:22.5kw

Mixing volume:1.5m³

Output:3-5t/h

Overall size:4800*3200*3500mm

Strong point:

1, Twin screw for agitation , one screw knife for cutting fiber

2, close set de-duster with automatic clean system.

3, automatic weighing and loading system.

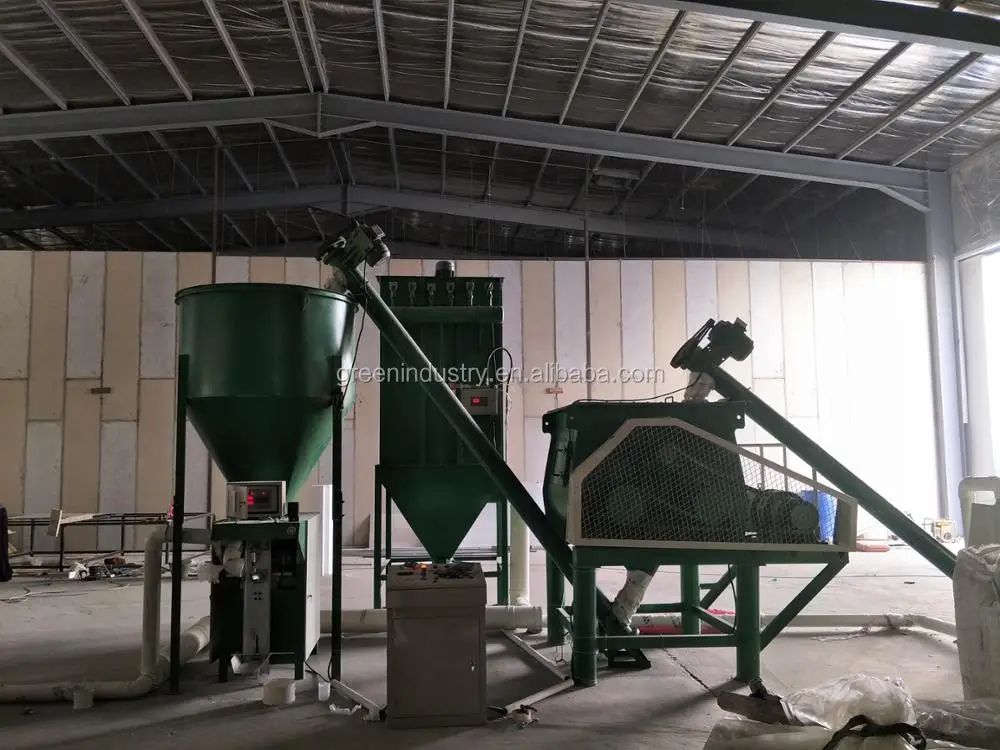

 MACHINE AT SUADI  ARABIA CUSTOMER FACTORY:



MACHINE AT UAE CUSTOMER FACTORY:





PRODUCT PARAMETER



NO.

       Description

UNIT

Specification

1

Overall Size

mm

6800×3800×3900

2

Total capacity

KW

24

3

Mixer Volumn

L

1000

        4

Capacity

T/h

2~4

5

Gross Weight

KG

3200





COMPANY INFORMATION



OUR SERVICE



Our service :Based on 17 years EPS industry`s experience. We can provide you full solution of EPS industry . Especially EPS exterior wall decoration projects. We believe , our professional service, qualified products and reliablity of team work will really benefit both side.

After-service:We will take reponsiblity for what we offer. Ensure to provide the qualified products to your side. What is more, the qualified start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.



FAQ



1, what is full business range ?
EPS decorative elements (column , cornice, trim) , EPS decorative machine and projects, EPS foam relative machinery



2, why we select your company ?
Our qualified products, our professional service and our reliablity will benefit your side more.



3, where is your location, and sea port or airport?

We are 300KM far from shanghai, jinhua city ,zhejiang province. Ningbo port is not far from us.



4.If you visited, ?You can take international flight to shanghai or hangzhou airport. ?

Our nearest domestic airport is Yiwu city.



5, what is the delivery time?

As for EPS decorative elements , it will take 3-4 weeks , as for machinery , 2 month delivery time is required



6, how is payment term?

T/T , L/C payment is avaible



7, how is gurantee ?

All machinery gurantee is one year. In case any problem owing to quality issue during gurantee. We will take free changes.
